Base type for a scalar advection-diffusion solver. More...

Inheritance diagram for adjoint_scalar_scheme::adjoint_scalar_scheme_t:

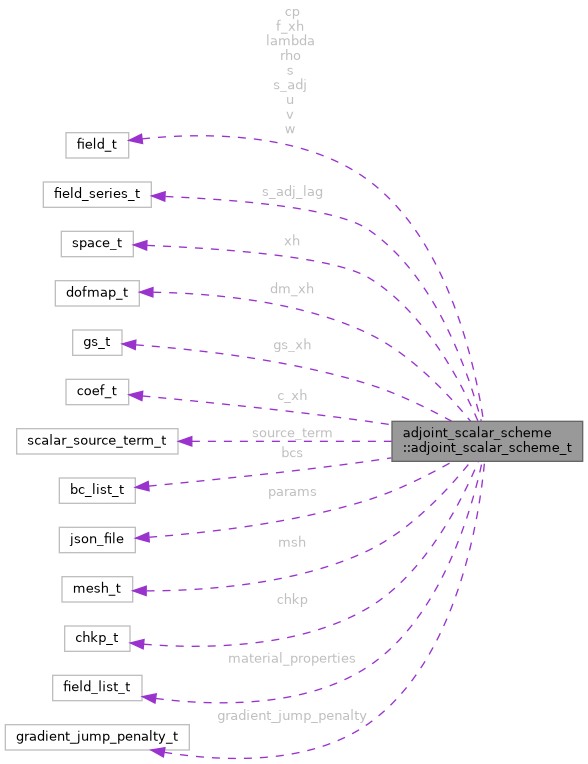

Collaboration diagram for adjoint_scalar_scheme::adjoint_scalar_scheme_t:

[legend]

Public Member Functions
procedure, pass(this)	scheme_init (this, msh, c_xh, gs_xh, params, scheme, user, rho)
	Constructor for the base type.

procedure, pass(this)	scheme_free (this)
	Destructor for the base type.

procedure, pass(this)	validate (this)
	Validate successful initialization.

procedure, pass(this)	set_material_properties (this, params, user)
	Set lambda and cp.

procedure, pass(this)	update_material_properties (t, tstep, this)
	Update variable material properties.

procedure(adjoint_scalar_scheme_init_intrf), deferred, pass	init (this, msh, coef, gs, params, user, ulag, vlag, wlag, time_scheme, rho)
	Constructor.

procedure(adjoint_scalar_scheme_free_intrf), deferred, pass	free (this)
	Destructor.

procedure(adjoint_scalar_scheme_step_intrf), deferred, pass	step (this, t, tstep, dt, ext_bdf, dt_controller)
	Solve for the current timestep.

procedure(adjoint_scalar_scheme_restart_intrf), deferred, pass	restart (this, dtlag, tlag)
	Restart from a checkpoint.

Public Attributes
character(len=:), allocatable	name
	A name that can be used to distinguish this solver in e.g. user routines.

type(field_t), pointer	u
	x-component of Velocity

type(field_t), pointer	v
	y-component of Velocity

type(field_t), pointer	w
	z-component of Velocity

type(field_t), pointer	s
	The forward scalar.

type(field_t), pointer	s_adj
	The adjoint scalar.

type(field_series_t)	s_adj_lag
	Lag arrays, i.e. solutions at previous timesteps.

type(space_t), pointer	xh
	Function space \( X_h \).

type(dofmap_t), pointer	dm_xh
	Dofmap associated with \( X_h \).

type(gs_t), pointer	gs_xh
	Gather-scatter associated with \( X_h \).

type(coef_t), pointer	c_xh
	Coefficients associated with \( X_h \).

type(field_t), pointer	f_xh => null()
	Right-hand side.

type(scalar_source_term_t)	source_term
	The source term for equation.

class(ksp_t), allocatable	ksp
	Krylov solver.

integer	ksp_maxiter
	Max iterations in the Krylov solver.

integer	projection_dim
	Projection space size.

integer	projection_activ_step

class(pc_t), allocatable	pc
	Preconditioner.

type(bc_list_t)	bcs
	List of boundary conditions, including the user one.

type(json_file), pointer	params
	Case paramters.

type(mesh_t), pointer	msh => null()
	Mesh.

type(chkp_t), pointer	chkp => null()
	Checkpoint for restarts.

character(len=:), allocatable	nut_field_name
	The turbulent kinematic viscosity field name.

type(field_t), pointer	rho => null()
	Density.

type(field_t)	lambda
	Thermal diffusivity.

type(field_t)	cp
	Specific heat capacity.

real(kind=rp)	pr_turb
	Turbulent Prandtl number.

type(field_list_t)	material_properties
	Field list with cp and lambda.

logical	variable_material_properties = .false.
	Is lambda varying in time? Currently only due to LES models.

logical	if_gradient_jump_penalty
	Gradient jump panelty.

type(gradient_jump_penalty_t)	gradient_jump_penalty

Static Public Attributes
procedure(user_material_properties), pointer, nopass	user_material_properties => null()

Detailed Description

Definition at line 87 of file adjoint_scalar_scheme.f90.

Member Function/Subroutine Documentation

◆ free()

procedure(adjoint_scalar_scheme_free_intrf), deferred, pass adjoint_scalar_scheme::adjoint_scalar_scheme_t::free ( class(adjoint_scalar_scheme_t), intent(inout) this )

pure virtual

Definition at line 167 of file adjoint_scalar_scheme.f90.

◆ init()

procedure(adjoint_scalar_scheme_init_intrf), deferred, pass adjoint_scalar_scheme::adjoint_scalar_scheme_t::init	(	class(adjoint_scalar_scheme_t), intent(inout), target	this,
		type(mesh_t), intent(in), target	msh,
		type(coef_t), intent(in), target	coef,
		type(gs_t), intent(inout), target	gs,
		type(json_file), intent(inout), target	params,
		type(user_t), intent(in), target	user,
		type(field_series_t), intent(in), target	ulag,
		type(field_series_t), intent(in), target	vlag,
		type(field_series_t), intent(in), target	wlag,
		type(time_scheme_controller_t), intent(in), target	time_scheme,
		type(field_t), intent(in), target	rho
	)

pure virtual

Definition at line 165 of file adjoint_scalar_scheme.f90.

◆ restart()

procedure(adjoint_scalar_scheme_restart_intrf), deferred, pass adjoint_scalar_scheme::adjoint_scalar_scheme_t::restart	(	class(adjoint_scalar_scheme_t), intent(inout), target	this,
		real(kind=rp), dimension(10)	dtlag,
		real(kind=rp), dimension(10)	tlag
	)

pure virtual

Definition at line 171 of file adjoint_scalar_scheme.f90.

◆ scheme_free()

procedure, pass(this) adjoint_scalar_scheme::adjoint_scalar_scheme_t::scheme_free ( class(adjoint_scalar_scheme_t), intent(inout) this )

Definition at line 155 of file adjoint_scalar_scheme.f90.

◆ scheme_init()

procedure, pass(this) adjoint_scalar_scheme::adjoint_scalar_scheme_t::scheme_init	(	class(adjoint_scalar_scheme_t), intent(inout), target	this,
		type(mesh_t), intent(in), target	msh,
		type(coef_t), intent(in), target	c_xh,
		type(gs_t), intent(inout), target	gs_xh,
		type(json_file), intent(inout), target	params,
		character(len=*), intent(in)	scheme,
		type(user_t), intent(in), target	user,
		type(field_t), intent(in), target	rho
	)

Parameters

[in,out]	this	The object.
	msh	The mesh.
	c_Xh	The coefficients.
	gs_Xh	The gather-scatter.
	params	The case parameter file in json.
	scheme	The name of the scalar scheme.
	user	Type with user-defined procedures.
	rho	The density of the fluid.

Definition at line 153 of file adjoint_scalar_scheme.f90.

◆ set_material_properties()

procedure, pass(this) adjoint_scalar_scheme::adjoint_scalar_scheme_t::set_material_properties	(	class(adjoint_scalar_scheme_t), intent(inout)	this,
		type(json_file), intent(inout)	params,
		type(user_t), intent(in), target	user
	)

Parameters

[in,out]	this	The object.
	params	The case parameter file.
	user	The user interface.

Definition at line 159 of file adjoint_scalar_scheme.f90.

◆ step()

procedure(adjoint_scalar_scheme_step_intrf), deferred, pass adjoint_scalar_scheme::adjoint_scalar_scheme_t::step	(	class(adjoint_scalar_scheme_t), intent(inout)	this,
		real(kind=rp), intent(in)	t,
		integer, intent(in)	tstep,
		real(kind=rp), intent(in)	dt,
		type(time_scheme_controller_t), intent(in)	ext_bdf,
		type(time_step_controller_t), intent(in)	dt_controller
	)

pure virtual

Definition at line 169 of file adjoint_scalar_scheme.f90.

◆ update_material_properties()

procedure, pass(this) adjoint_scalar_scheme::adjoint_scalar_scheme_t::update_material_properties	(	real(kind=rp), intent(in)	t,
		integer, intent(in)	tstep,
		class(adjoint_scalar_scheme_t), intent(inout)	this
	)

Parameters

[in,out]	this	The object.
	t	Time value.
	tstep	Current time step.

Definition at line 162 of file adjoint_scalar_scheme.f90.

◆ validate()

procedure, pass(this) adjoint_scalar_scheme::adjoint_scalar_scheme_t::validate ( class(adjoint_scalar_scheme_t), intent(inout), target this )

Definition at line 157 of file adjoint_scalar_scheme.f90.

Member Data Documentation

◆ bcs

type(bc_list_t) adjoint_scalar_scheme::adjoint_scalar_scheme_t::bcs

Definition at line 125 of file adjoint_scalar_scheme.f90.

◆ c_xh

type(coef_t), pointer adjoint_scalar_scheme::adjoint_scalar_scheme_t::c_xh

Definition at line 109 of file adjoint_scalar_scheme.f90.

◆ chkp

type(chkp_t), pointer adjoint_scalar_scheme::adjoint_scalar_scheme_t::chkp => null()

Definition at line 131 of file adjoint_scalar_scheme.f90.

◆ cp

type(field_t) adjoint_scalar_scheme::adjoint_scalar_scheme_t::cp

Definition at line 139 of file adjoint_scalar_scheme.f90.

◆ dm_xh

type(dofmap_t), pointer adjoint_scalar_scheme::adjoint_scalar_scheme_t::dm_xh

Definition at line 105 of file adjoint_scalar_scheme.f90.

◆ f_xh

type(field_t), pointer adjoint_scalar_scheme::adjoint_scalar_scheme_t::f_xh => null()

Definition at line 111 of file adjoint_scalar_scheme.f90.

◆ gradient_jump_penalty

type(gradient_jump_penalty_t) adjoint_scalar_scheme::adjoint_scalar_scheme_t::gradient_jump_penalty

Definition at line 150 of file adjoint_scalar_scheme.f90.

◆ gs_xh

type(gs_t), pointer adjoint_scalar_scheme::adjoint_scalar_scheme_t::gs_xh

Definition at line 107 of file adjoint_scalar_scheme.f90.

◆ if_gradient_jump_penalty

logical adjoint_scalar_scheme::adjoint_scalar_scheme_t::if_gradient_jump_penalty

Definition at line 149 of file adjoint_scalar_scheme.f90.

◆ ksp

class(ksp_t), allocatable adjoint_scalar_scheme::adjoint_scalar_scheme_t::ksp

Definition at line 115 of file adjoint_scalar_scheme.f90.

◆ ksp_maxiter

integer adjoint_scalar_scheme::adjoint_scalar_scheme_t::ksp_maxiter

Definition at line 117 of file adjoint_scalar_scheme.f90.

◆ lambda

type(field_t) adjoint_scalar_scheme::adjoint_scalar_scheme_t::lambda

Definition at line 137 of file adjoint_scalar_scheme.f90.

◆ material_properties

type(field_list_t) adjoint_scalar_scheme::adjoint_scalar_scheme_t::material_properties

Definition at line 143 of file adjoint_scalar_scheme.f90.

◆ msh

type(mesh_t), pointer adjoint_scalar_scheme::adjoint_scalar_scheme_t::msh => null()

Definition at line 129 of file adjoint_scalar_scheme.f90.

◆ name

character(len=:), allocatable adjoint_scalar_scheme::adjoint_scalar_scheme_t::name

Definition at line 89 of file adjoint_scalar_scheme.f90.

◆ nut_field_name

character(len=:), allocatable adjoint_scalar_scheme::adjoint_scalar_scheme_t::nut_field_name

Definition at line 133 of file adjoint_scalar_scheme.f90.

◆ params

type(json_file), pointer adjoint_scalar_scheme::adjoint_scalar_scheme_t::params

Definition at line 127 of file adjoint_scalar_scheme.f90.

◆ pc

class(pc_t), allocatable adjoint_scalar_scheme::adjoint_scalar_scheme_t::pc

Definition at line 123 of file adjoint_scalar_scheme.f90.

◆ pr_turb

real(kind=rp) adjoint_scalar_scheme::adjoint_scalar_scheme_t::pr_turb

Definition at line 141 of file adjoint_scalar_scheme.f90.

◆ projection_activ_step

integer adjoint_scalar_scheme::adjoint_scalar_scheme_t::projection_activ_step

Definition at line 121 of file adjoint_scalar_scheme.f90.

◆ projection_dim

integer adjoint_scalar_scheme::adjoint_scalar_scheme_t::projection_dim

Steps to activate projection for ksp

Definition at line 119 of file adjoint_scalar_scheme.f90.

◆ rho

type(field_t), pointer adjoint_scalar_scheme::adjoint_scalar_scheme_t::rho => null()

Definition at line 135 of file adjoint_scalar_scheme.f90.

◆ s

type(field_t), pointer adjoint_scalar_scheme::adjoint_scalar_scheme_t::s

Definition at line 97 of file adjoint_scalar_scheme.f90.

◆ s_adj

type(field_t), pointer adjoint_scalar_scheme::adjoint_scalar_scheme_t::s_adj

Definition at line 99 of file adjoint_scalar_scheme.f90.

◆ s_adj_lag

type(field_series_t) adjoint_scalar_scheme::adjoint_scalar_scheme_t::s_adj_lag

Definition at line 101 of file adjoint_scalar_scheme.f90.

◆ source_term

type(scalar_source_term_t) adjoint_scalar_scheme::adjoint_scalar_scheme_t::source_term

Definition at line 113 of file adjoint_scalar_scheme.f90.

◆ u

type(field_t), pointer adjoint_scalar_scheme::adjoint_scalar_scheme_t::u

Definition at line 91 of file adjoint_scalar_scheme.f90.

◆ user_material_properties

procedure(user_material_properties), pointer, nopass adjoint_scalar_scheme::adjoint_scalar_scheme_t::user_material_properties => null()

static

Definition at line 146 of file adjoint_scalar_scheme.f90.

◆ v

type(field_t), pointer adjoint_scalar_scheme::adjoint_scalar_scheme_t::v

Definition at line 93 of file adjoint_scalar_scheme.f90.

◆ variable_material_properties

logical adjoint_scalar_scheme::adjoint_scalar_scheme_t::variable_material_properties = .false.

Definition at line 145 of file adjoint_scalar_scheme.f90.

◆ w

type(field_t), pointer adjoint_scalar_scheme::adjoint_scalar_scheme_t::w

Definition at line 95 of file adjoint_scalar_scheme.f90.

◆ xh

type(space_t), pointer adjoint_scalar_scheme::adjoint_scalar_scheme_t::xh

Definition at line 103 of file adjoint_scalar_scheme.f90.

The documentation for this type was generated from the following file:

/home/runner/work/neko-top/neko-top/sources/adjoint/adjoint_scalar_scheme.f90

Public Member Functions

Public Attributes

Static Public Attributes

Detailed Description

Member Function/Subroutine Documentation

◆ free()

◆ init()

◆ restart()

◆ scheme_free()

◆ scheme_init()

◆ set_material_properties()

◆ step()

◆ update_material_properties()

◆ validate()

Member Data Documentation

◆ bcs

◆ c_xh

◆ chkp

◆ cp

◆ dm_xh

◆ f_xh

◆ gradient_jump_penalty

◆ gs_xh

◆ if_gradient_jump_penalty

◆ ksp

◆ ksp_maxiter

◆ lambda

◆ material_properties

◆ msh

◆ name

◆ nut_field_name

◆ params

◆ pc

◆ pr_turb

◆ projection_activ_step

◆ projection_dim

◆ rho

◆ s

◆ s_adj

◆ s_adj_lag

◆ source_term

◆ u

◆ user_material_properties

◆ v

◆ variable_material_properties

◆ w

◆ xh
