Inheritance diagram for state_recover_checkpoint::state_recover_checkpoint_t:

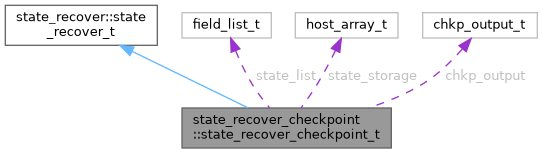

Collaboration diagram for state_recover_checkpoint::state_recover_checkpoint_t:

[legend]

Public Member Functions
procedure, pass(this), public	init (this, neko_case, params)
	Initialization from a JSON file.

procedure, pass(this), public	init_from_components (this, neko_case, algorithm, n_saves_memory, path, filename, fmt, keep_checkpoints, extra_fields)
	Initialization from components.

procedure, pass(this), public	free (this)
	Free.

procedure, pass(this), public	reset (this)
	Reset the checkpoint data.

procedure, pass(this), public	restore (this, tstep)
	Save the current state of the simulation to disk.

procedure, pass(this)	save_data (this, index)
	Save current data to the ram checkpoint at index.

procedure, pass(this)	load_data (this, index)
	Restore data from the ram checkpoint at index to the current state.

procedure(state_recover_init), deferred, pass, public	init (this, neko_case, params)

procedure(state_recover_free), deferred, pass, public	free (this)

procedure(state_recover_reset), deferred, pass, public	reset (this)

procedure(state_recover_restore), deferred, pass, public	restore (this, tstep)

procedure, pass, public	get_n_timesteps (this)
	Get the number of states recorded by this recovery strategy.

procedure, pass, public	set_n_timesteps (this, n)
	Set the number of states recorded by this recovery strategy.

Public Attributes
character(len=256)	filename = "forward_checkpoint"
	The name of the checkpoint file.

character(len=256)	path = "checkpoints/"
	The path to the checkpoint file (directory)

character(len=8)	fmt = "chkp"
	The format of the checkpoint file.

integer	n_saves_memory = 10
	Number of checkpoints to keep in memory.

logical	keep_checkpoints = .false.
	Whether to keep the checkpoint files on disk after the simulation ends.

integer	algorithm_id = 0

integer	n_saves_disc = 0

integer	first_valid_timestep = 2

integer	loaded_checkpoint = -1

type(field_list_t)	state_list

type(host_array_t), dimension(:,:), allocatable	state_storage

type(chkp_output_t)	chkp_output

class(case_t), pointer, public	neko_case => null()
	Case associated with this recovery strategy at initialization.

integer	n_timesteps = 0
	Number of states recorded by this recovery strategy.

Detailed Description

Definition at line 61 of file checkpoint.f90.

Member Function/Subroutine Documentation

◆ free() [1/2]

procedure, pass(this), public state_recover_checkpoint::state_recover_checkpoint_t::free ( class(state_recover_checkpoint_t), intent(inout) this )

Parameters

[in,out] this Checkpointing implementation.

Definition at line 100 of file checkpoint.f90.

◆ free() [2/2]

procedure(state_recover_free), deferred, pass, public state_recover::state_recover_t::free ( class(state_recover_t), intent(inout) this )

pure virtualinherited

Definition at line 62 of file state_recover.f90.

◆ get_n_timesteps()

procedure, pass, public state_recover::state_recover_t::get_n_timesteps ( class(state_recover_t), intent(in) this )

inherited

Parameters

[in] this State recovery instance.

Definition at line 66 of file state_recover.f90.

◆ init() [1/2]

procedure, pass(this), public state_recover_checkpoint::state_recover_checkpoint_t::init	(	class(state_recover_checkpoint_t), intent(inout)	this,
		class(case_t), intent(inout), target	neko_case,
		type(json_file), intent(inout)	params
	)

Restore the forward simulation state in a linear fashion Initialization

Parameters

[in,out]	this	Checkpointing implementation.
[in,out]	neko_case	Case data structure.
[in,out]	params	JSON parameters.

Definition at line 95 of file checkpoint.f90.

◆ init() [2/2]

procedure(state_recover_init), deferred, pass, public state_recover::state_recover_t::init	(	class(state_recover_t), intent(inout)	this,
		class(case_t), intent(inout), target	neko_case,
		type(json_file), intent(inout)	params
	)

pure virtualinherited

Definition at line 61 of file state_recover.f90.

◆ init_from_components()

procedure, pass(this), public state_recover_checkpoint::state_recover_checkpoint_t::init_from_components	(	class(state_recover_checkpoint_t), intent(inout), target	this,
		class(case_t), intent(inout), target	neko_case,
		character(len=*), intent(in)	algorithm,
		integer, intent(in), optional	n_saves_memory,
		character(len=*), intent(in), optional	path,
		character(len=*), intent(in), optional	filename,
		character(len=*), intent(in), optional	fmt,
		logical, intent(in), optional	keep_checkpoints,
		type(field_list_t), intent(inout), optional	extra_fields
	)

Parameters

[in,out]	this	Checkpointing implementation.
[in,out]	neko_case	Case data structure.
[in]	algorithm	Checkpointing algorithm identifier.
[in]	n_saves_memory	Number of checkpoints in memory.
[in]	path	Output directory for checkpoint files.
[in]	filename	Checkpoint base filename.
[in]	fmt	Checkpoint file format.
[in]	keep_checkpoints	Whether to keep checkpoint files on disk.
[in,out]	extra_fields	Additional fields to include in checkpoints.

Definition at line 97 of file checkpoint.f90.

◆ load_data()

procedure, pass(this) state_recover_checkpoint::state_recover_checkpoint_t::load_data	(	class(state_recover_checkpoint_t), intent(inout)	this,
		integer, intent(in)	index
	)

Parameters

this	The checkpoint object.
index	The index in the RAM checkpoint to restore from.

Definition at line 111 of file checkpoint.f90.

◆ reset() [1/2]

procedure, pass(this), public state_recover_checkpoint::state_recover_checkpoint_t::reset ( class(state_recover_checkpoint_t), intent(inout) this )

Parameters

[in,out] this Checkpointing implementation.

Definition at line 102 of file checkpoint.f90.

◆ reset() [2/2]

procedure(state_recover_reset), deferred, pass, public state_recover::state_recover_t::reset ( class(state_recover_t), intent(inout) this )

pure virtualinherited

Definition at line 63 of file state_recover.f90.

◆ restore() [1/2]

procedure, pass(this), public state_recover_checkpoint::state_recover_checkpoint_t::restore	(	class(state_recover_checkpoint_t), intent(inout)	this,
		integer, intent(in)	tstep
	)

Restore the forward simulation state

Definition at line 106 of file checkpoint.f90.

◆ restore() [2/2]

procedure(state_recover_restore), deferred, pass, public state_recover::state_recover_t::restore	(	class(state_recover_t), intent(inout)	this,
		integer, intent(in)	tstep
	)

pure virtualinherited

Definition at line 65 of file state_recover.f90.

◆ save_data()

procedure, pass(this) state_recover_checkpoint::state_recover_checkpoint_t::save_data	(	class(state_recover_checkpoint_t), intent(inout)	this,
		integer, intent(in)	index
	)

Parameters

this	The checkpoint object.
index	The index in the RAM checkpoint to save to.

Definition at line 109 of file checkpoint.f90.

◆ set_n_timesteps()

procedure, pass, public state_recover::state_recover_t::set_n_timesteps	(	class(state_recover_t), intent(inout)	this,
		integer, intent(in)	n
	)

inherited

Parameters

[in,out]	this	State recovery instance.
[in]	n	Number of recorded states.

Definition at line 68 of file state_recover.f90.

Member Data Documentation

◆ algorithm_id

integer state_recover_checkpoint::state_recover_checkpoint_t::algorithm_id = 0

Definition at line 81 of file checkpoint.f90.

◆ chkp_output

type(chkp_output_t) state_recover_checkpoint::state_recover_checkpoint_t::chkp_output

Definition at line 91 of file checkpoint.f90.

◆ filename

character(len=256) state_recover_checkpoint::state_recover_checkpoint_t::filename = "forward_checkpoint"

Definition at line 70 of file checkpoint.f90.

◆ first_valid_timestep

integer state_recover_checkpoint::state_recover_checkpoint_t::first_valid_timestep = 2

Definition at line 83 of file checkpoint.f90.

◆ fmt

character(len=8) state_recover_checkpoint::state_recover_checkpoint_t::fmt = "chkp"

Definition at line 74 of file checkpoint.f90.

◆ keep_checkpoints

logical state_recover_checkpoint::state_recover_checkpoint_t::keep_checkpoints = .false.

Definition at line 78 of file checkpoint.f90.

◆ loaded_checkpoint

integer state_recover_checkpoint::state_recover_checkpoint_t::loaded_checkpoint = -1

Definition at line 84 of file checkpoint.f90.

◆ n_saves_disc

integer state_recover_checkpoint::state_recover_checkpoint_t::n_saves_disc = 0

Definition at line 82 of file checkpoint.f90.

◆ n_saves_memory

integer state_recover_checkpoint::state_recover_checkpoint_t::n_saves_memory = 10

Definition at line 76 of file checkpoint.f90.

◆ n_timesteps

integer state_recover::state_recover_t::n_timesteps = 0

inherited

Definition at line 59 of file state_recover.f90.

◆ neko_case

class(case_t), pointer, public state_recover::state_recover_t::neko_case => null()

inherited

Definition at line 57 of file state_recover.f90.

◆ path

character(len=256) state_recover_checkpoint::state_recover_checkpoint_t::path = "checkpoints/"

Definition at line 72 of file checkpoint.f90.

◆ state_list

type(field_list_t) state_recover_checkpoint::state_recover_checkpoint_t::state_list

Definition at line 87 of file checkpoint.f90.

◆ state_storage

type(host_array_t), dimension(:,:), allocatable state_recover_checkpoint::state_recover_checkpoint_t::state_storage

Definition at line 88 of file checkpoint.f90.

The documentation for this type was generated from the following file:

/home/runner/work/neko-top/neko-top/sources/state_recovery/checkpoint/checkpoint.f90
