neko_ext Module Reference

Contains extensions to the neko library required to run the topology optimization code.

Functions/Subroutines
subroutine, public	reset (neko_case, design_iteration, output_base_fname)
	Reset the case data structure.
subroutine, public	reset_adjoint (adjoint_case, neko_case, design_iteration, output_base_fname)
	Reset the adjoint case data structure.
subroutine, public	vector_to_field (field, vector)
	Vector to field.
subroutine, public	field_to_vector (vector, field)
	Field to vector.
subroutine, public	get_scalar_indicies (i_primal, i_adjoint, scalars, adjoint_scalars, primal_name)
	get scalar indices

Function/Subroutine Documentation

field_to_vector()

subroutine, public neko_ext::field_to_vector	(	type(vector_t), intent(inout)	vector,
		type(field_t), intent(in)	field
	)

This subroutine converts a field to a vector in the special case that they have the same dimension.

Parameters

[out]	vector	the output vector.
[in]	field	the input field.

Definition at line 483 of file neko_ext.f90.

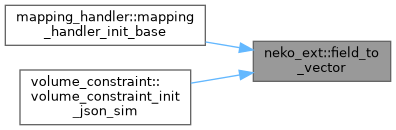

Here is the caller graph for this function:

get_scalar_indicies()

subroutine, public neko_ext::get_scalar_indicies	(	integer, intent(out)	i_primal,
		integer, intent(out)	i_adjoint,
		type(scalars_t), intent(inout)	scalars,
		type(adjoint_scalars_t), intent(inout)	adjoint_scalars,
		character(len=*), intent(in)	primal_name
	)

Given a primal scalar name, return the indices in the scalars and adjoint_scalars list corresponding to this pair.

Parameters

[out]	i_primal	Index in the primal scalar list.
[out]	i_adjoint	Index in the adjoint scalar list.
[in,out]	scalars	Primal scalars list.
[in,out]	adjoint_scalars	Adjoint scalars list.
[in]	primal_name	Name of the primal scalar.

Definition at line 508 of file neko_ext.f90.

Here is the caller graph for this function:

reset()

subroutine, public neko_ext::reset	(	type(case_t), intent(inout)	neko_case,
		integer, intent(in)	design_iteration,
		character(len=*), intent(in)	output_base_fname
	)

This subroutine resets the case data structure. It is called at the beginning of each iteration. It is used to reset the time step counter, the lagged time step parameters, the external BDF coefficients, the fluid and scalar fields, and the simulation components.

Parameters

[in,out]	neko_case	Case data structure.
[in]	design_iteration	The current design iteration. Spliced into neko_casef_out's filename so each design iteration's field output is kept, rather than every iteration overwriting the same numbered files.
[in]	output_base_fname	neko_casef_out's pristine base filename, as configured from the case file (i.e. before any design-iteration tag has ever been spliced into it).

Definition at line 97 of file neko_ext.f90.

Here is the caller graph for this function:

reset_adjoint()

subroutine, public neko_ext::reset_adjoint	(	type(adjoint_case_t), intent(inout)	adjoint_case,
		type(case_t), intent(inout)	neko_case,
		integer, intent(in)	design_iteration,
		character(len=*), intent(in)	output_base_fname
	)

This subroutine resets the adjoint case data structure. It is called at the beginning of each iteration. It is used to reset the time step counter, the lagged time step parameters, the external BDF coefficients, the adjoint fluid_adj and adjoint scalar fields.

Parameters

[in,out]	adjoint_case	Adjoint case data structure.
[in]	neko_case	Primal case.
[in]	design_iteration	The current design iteration. Spliced into adjoint_casef_out's filename so each design iteration's adjoint output is kept, rather than every iteration overwriting the same numbered files.
[in]	output_base_fname	adjoint_casef_out's pristine base filename, as configured from the case file (i.e. before any design-iteration tag has ever been spliced into it).

Definition at line 288 of file neko_ext.f90.

Here is the caller graph for this function:

vector_to_field()

subroutine, public neko_ext::vector_to_field	(	type(field_t), intent(inout)	field,
		type(vector_t), intent(in)	vector
	)

This subroutine converts a vector to a field in the special case that they have the same dimension.

Parameters

[out]	field	the output field.
[in]	vector	the input vector.

Definition at line 459 of file neko_ext.f90.

Here is the caller graph for this function:
