Abstract type to compute pressure residual. More...

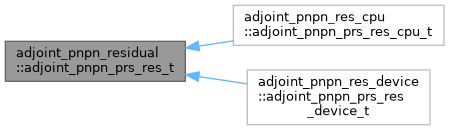

Inheritance diagram for adjoint_pnpn_residual::adjoint_pnpn_prs_res_t:

[legend]

Static Public Member Functions
procedure(adjoint_prs_res), deferred, nopass	compute (p, p_res, u, v, w, f_x, f_y, f_z, c_xh, gs_xh, bc_prs_surface, bc_sym_surface, ax, bd, dt, mu, rho, event)

Detailed Description

Definition at line 48 of file adjoint_pnpn_res.f90.

Member Function/Subroutine Documentation

procedure(adjoint_prs_res), deferred, nopass adjoint_pnpn_residual::adjoint_pnpn_prs_res_t::compute	(	type(field_t), intent(inout)	p,
		type(field_t), intent(inout)	p_res,
		type(field_t), intent(inout)	u,
		type(field_t), intent(inout)	v,
		type(field_t), intent(inout)	w,
		type(field_t), intent(in)	f_x,
		type(field_t), intent(in)	f_y,
		type(field_t), intent(in)	f_z,
		type(coef_t), intent(inout)	c_xh,
		type(gs_t), intent(inout)	gs_xh,
		type(facet_normal_t), intent(in)	bc_prs_surface,
		type(facet_normal_t), intent(in)	bc_sym_surface,
		class(ax_t), intent(inout)	ax,
		real(kind=rp), intent(in)	bd,
		real(kind=rp), intent(in)	dt,
		type(field_t), intent(in)	mu,
		type(field_t), intent(in)	rho,
		type(c_ptr), intent(inout)	event
	)

staticpure virtual

Parameters

[in,out]	p	Adjoint pressure field.
[in,out]	u	Adjoint velocity x-component.
[in,out]	v	Adjoint velocity y-component.
[in,out]	w	Adjoint velocity z-component.
[in,out]	p_res	Pressure residual output.
[in]	f_x	Explicit forcing x-component.
[in]	f_y	Explicit forcing y-component.
[in]	f_z	Explicit forcing z-component.
[in,out]	c_xh	Coefficients on the pressure space.
[in,out]	gs_xh	Gather-scatter operator on the pressure space.
[in]	bc_prs_surface	Pressure boundary surface normals.
[in]	bc_sym_surface	Symmetry boundary surface normals.
[in,out]	ax	Helmholtz operator.
[in]	bd	BDF coefficient for the current step.
[in]	dt	Time-step size.
[in]	mu	Dynamic viscosity field.
[in]	rho	Density field.
[in,out]	event	Backend event handle.

Definition at line 50 of file adjoint_pnpn_res.f90.
