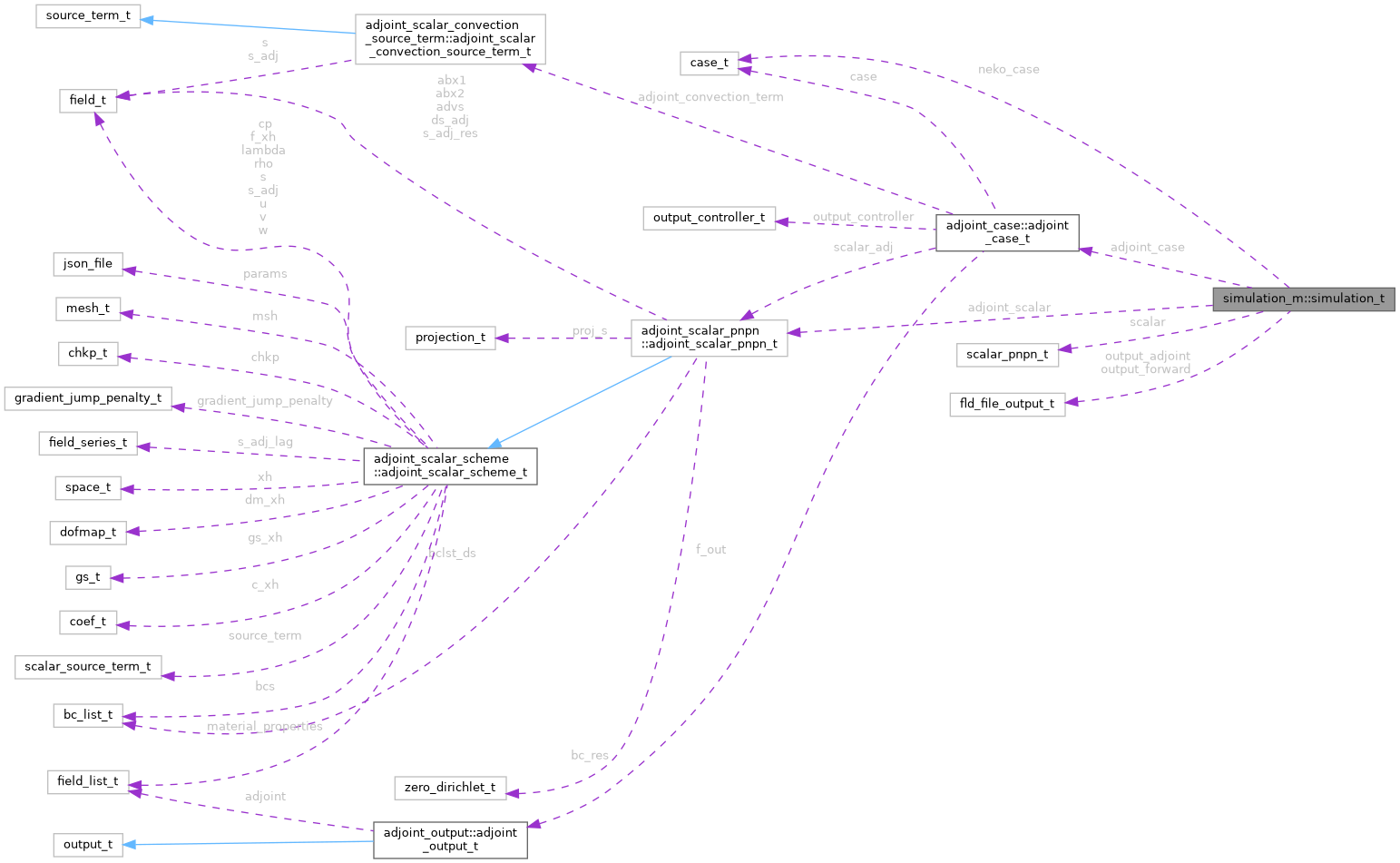

Collaboration diagram for simulation_m::simulation_t:

[legend]

Public Member Functions
procedure, pass(this)	init (this, parameters)
	Initialize the simulation.

procedure, pass(this)	free (this)
	Free the simulation.

procedure, pass(this)	run_forward (this)
	Run the simulation.

procedure, pass(this)	run_backward (this)
	Run the adjoint simulation.

procedure, pass(this)	reset (this)
	Reset the simulation.

procedure, pass(this)	set_output_counter (this, idx)
	Set simulation output counters.

procedure, pass(this)	set_design_iteration (this, iteration)
	Set the current design iteration.

procedure, pass(this)	write (this, idx)
	Write current state of the simulation to disk.

procedure, pass(this)	write_forward (this, idx)
	Write current state of the forward simulation to disk.

procedure, pass(this)	write_adjoint (this, idx)
	Write current state of the adjoint simulation to disk.

Public Attributes
type(case_t), public	neko_case
	and primal case

type(adjoint_case_t), public	adjoint_case
	and adjoint case

class(fluid_scheme_incompressible_t), pointer, public	fluid => null()
	The fluid.

type(scalars_t), pointer, public	scalars => null()
	The scalar.

class(adjoint_fluid_scheme_t), pointer, public	adjoint_fluid => null()
	The adjoint fluid.

type(adjoint_scalars_t), pointer, public	adjoint_scalars => null()
	The adjoint scalar.

type(field_output_t), public	output_forward
	An output sampler for the forward problem. This should probably be an output controller at some point instead.

type(field_output_t), public	output_adjoint
	An output sampler for the adjoint problem. This should probably be an output controller at some point instead.

character(len=:), allocatable	forward_field_base_fname
	Base output filename for Neko's own forward field output (`neko_casef_out`), captured before any design-iteration tag is spliced into it, so that tag can be rebuilt fresh on every reset.

character(len=:), allocatable	adjoint_field_base_fname
	Base output filename for Neko's own adjoint field output (`adjoint_casef_out`), captured before any design-iteration tag is spliced into it, so that tag can be rebuilt fresh on every reset.

integer	current_design_iteration = 0
	The current design iteration. Used so that `reset` can keep Neko's own field output (`neko_casef_out` / `adjoint_casef_out`) from overwriting the previous design iteration's output.

logical	unsteady = .false.
	Whether the simulation is steady or unsteady.

logical	have_scalar = .false.

integer	n_timesteps = 0

real(kind=dp)	forward_init_dt = 0.0_dp
	The forward time step as initialised from the case file. A variable timestep changes `neko_casetimedt` during a run, and `reset` starts the next run's time-step history from it, so it is restored first.

real(kind=dp)	adjoint_init_dt = 0.0_dp
	The adjoint time step as initialised from the case file, restored on `reset` for the same reason as `forward_init_dt`.

class(state_recover_t), allocatable	state_recover
	The state recovery system data.

Detailed Description

Definition at line 67 of file simulation.f90.

Member Function/Subroutine Documentation

◆ free()

procedure, pass(this) simulation_m::simulation_t::free ( class(simulation_t), intent(inout) this )

Definition at line 122 of file simulation.f90.

◆ init()

procedure, pass(this) simulation_m::simulation_t::init	(	class(simulation_t), intent(inout), target	this,
		type(json_file), intent(inout)	parameters
	)

Definition at line 120 of file simulation.f90.

◆ reset()

procedure, pass(this) simulation_m::simulation_t::reset ( class(simulation_t), intent(inout) this )

Definition at line 128 of file simulation.f90.

◆ run_backward()

procedure, pass(this) simulation_m::simulation_t::run_backward ( class(simulation_t), intent(inout) this )

Definition at line 126 of file simulation.f90.

◆ run_forward()

procedure, pass(this) simulation_m::simulation_t::run_forward ( class(simulation_t), intent(inout) this )

Definition at line 124 of file simulation.f90.

◆ set_design_iteration()

procedure, pass(this) simulation_m::simulation_t::set_design_iteration	(	class(simulation_t), intent(inout)	this,
		integer, intent(in)	iteration
	)

Parameters

this	The simulation object.
iteration	The current design iteration.

Definition at line 133 of file simulation.f90.

◆ set_output_counter()

procedure, pass(this) simulation_m::simulation_t::set_output_counter	(	class(simulation_t), intent(inout)	this,
		integer, intent(in)	idx
	)

Definition at line 130 of file simulation.f90.

◆ write()

procedure, pass(this) simulation_m::simulation_t::write	(	class(simulation_t), intent(inout)	this,
		integer, intent(in)	idx
	)

Definition at line 136 of file simulation.f90.

◆ write_adjoint()

procedure, pass(this) simulation_m::simulation_t::write_adjoint	(	class(simulation_t), intent(inout)	this,
		integer, intent(in)	idx
	)

Definition at line 140 of file simulation.f90.

◆ write_forward()

procedure, pass(this) simulation_m::simulation_t::write_forward	(	class(simulation_t), intent(inout)	this,
		integer, intent(in)	idx
	)

Definition at line 138 of file simulation.f90.

Member Data Documentation

◆ adjoint_case

type(adjoint_case_t), public simulation_m::simulation_t::adjoint_case

Definition at line 72 of file simulation.f90.

◆ adjoint_field_base_fname

character(len=:), allocatable simulation_m::simulation_t::adjoint_field_base_fname

Definition at line 94 of file simulation.f90.

◆ adjoint_fluid

class(adjoint_fluid_scheme_t), pointer, public simulation_m::simulation_t::adjoint_fluid => null()

Definition at line 78 of file simulation.f90.

◆ adjoint_init_dt

real(kind=dp) simulation_m::simulation_t::adjoint_init_dt = 0.0_dp

Definition at line 110 of file simulation.f90.

◆ adjoint_scalars

type(adjoint_scalars_t), pointer, public simulation_m::simulation_t::adjoint_scalars => null()

Definition at line 80 of file simulation.f90.

◆ current_design_iteration

integer simulation_m::simulation_t::current_design_iteration = 0

Definition at line 98 of file simulation.f90.

◆ fluid

class(fluid_scheme_incompressible_t), pointer, public simulation_m::simulation_t::fluid => null()

Definition at line 74 of file simulation.f90.

◆ forward_field_base_fname

character(len=:), allocatable simulation_m::simulation_t::forward_field_base_fname

Definition at line 90 of file simulation.f90.

◆ forward_init_dt

real(kind=dp) simulation_m::simulation_t::forward_init_dt = 0.0_dp

Definition at line 107 of file simulation.f90.

◆ have_scalar

logical simulation_m::simulation_t::have_scalar = .false.

Definition at line 102 of file simulation.f90.

◆ n_timesteps

integer simulation_m::simulation_t::n_timesteps = 0

Definition at line 103 of file simulation.f90.

◆ neko_case

type(case_t), public simulation_m::simulation_t::neko_case

Definition at line 70 of file simulation.f90.

◆ output_adjoint

type(field_output_t), public simulation_m::simulation_t::output_adjoint

Definition at line 86 of file simulation.f90.

◆ output_forward

type(field_output_t), public simulation_m::simulation_t::output_forward

Definition at line 83 of file simulation.f90.

◆ scalars

type(scalars_t), pointer, public simulation_m::simulation_t::scalars => null()

Definition at line 76 of file simulation.f90.

◆ state_recover

class(state_recover_t), allocatable simulation_m::simulation_t::state_recover

Definition at line 116 of file simulation.f90.

◆ unsteady

logical simulation_m::simulation_t::unsteady = .false.

Definition at line 100 of file simulation.f90.

The documentation for this type was generated from the following file:

/home/runner/work/neko-top/neko-top/sources/simulation/simulation.f90
