adjoint_pnpn_residual::adjoint_pnpn_vel_res_t Type Reference

Abstract type to compute velocity residual. More...

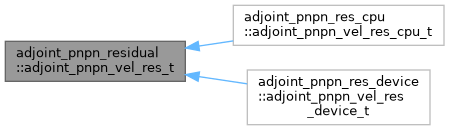

Inheritance diagram for adjoint_pnpn_residual::adjoint_pnpn_vel_res_t:

Static Public Member Functions
procedure(adjoint_vel_res), deferred, nopass	compute (ax, u, v, w, u_res, v_res, w_res, p, f_x, f_y, f_z, c_xh, msh, xh, mu, rho, bd, dt, n)

Detailed Description

Definition at line 54 of file adjoint_pnpn_res.f90.

Member Function/Subroutine Documentation

compute()

procedure(adjoint_vel_res), deferred, nopass adjoint_pnpn_residual::adjoint_pnpn_vel_res_t::compute ( class(ax_t), intent(in)  ax, type(field_t), intent(inout)  u, type(field_t), intent(inout)  v, type(field_t), intent(inout)  w, type(field_t), intent(inout)  u_res, type(field_t), intent(inout)  v_res, type(field_t), intent(inout)  w_res, type(field_t), intent(inout)  p, type(field_t), intent(in)  f_x, type(field_t), intent(in)  f_y, type(field_t), intent(in)  f_z, type(coef_t), intent(inout)  c_xh, type(mesh_t), intent(inout)  msh, type(space_t), intent(inout)  xh, type(field_t), intent(in)  mu, type(field_t), intent(in)  rho, real(kind=rp), intent(in)  bd, real(kind=rp), intent(in)  dt, integer, intent(in)  n  )

staticpure virtual

Parameters

[in]	ax	Helmholtz operator.
[in,out]	msh	Mesh object.
[in,out]	xh	Velocity space.
[in,out]	p	Adjoint pressure field.
[in,out]	u	Adjoint velocity x-component.
[in,out]	v	Adjoint velocity y-component.
[in,out]	w	Adjoint velocity z-component.
[in,out]	u_res	Residual for adjoint velocity x-component.
[in,out]	v_res	Residual for adjoint velocity y-component.
[in,out]	w_res	Residual for adjoint velocity z-component.
[in]	f_x	Explicit forcing x-component.
[in]	f_y	Explicit forcing y-component.
[in]	f_z	Explicit forcing z-component.
[in,out]	c_xh	Coefficients on the velocity space.
[in]	mu	Dynamic viscosity field.
[in]	rho	Density field.
[in]	bd	BDF coefficient for the current step.
[in]	dt	Time-step size.
[in]	n	Number of degrees of freedom.

Implemented in adjoint_pnpn_res_cpu::adjoint_pnpn_vel_res_cpu_t, and adjoint_pnpn_res_device::adjoint_pnpn_vel_res_device_t.

Definition at line 56 of file adjoint_pnpn_res.f90.

---

The documentation for this type was generated from the following file:

• /home/runner/work/neko-top/neko-top/sources/adjoint/adjoint_pnpn_res.f90
