device_steepest_descent Module Reference

Device backend dispatch for the steepest-descent optimizer kernels. More...

Functions/Subroutines
subroutine, public	device_sd_direction (s_d, x_d, xmin, xmax, n)
	Bound-projected steepest-descent direction on the device (Eq. D22).
subroutine, public	device_sd_update_move_limits (delta_d, x_d, x1_d, x2_d, dec, inc, dmin, dmax, n)
	Adapt the move limits on the device (Eq. D23).
subroutine, public	device_sd_update_design (x_new_d, x_d, s_d, delta_d, psi, smax, xmin, xmax, n)
	Move-limited, box-constrained design update on the device (Eq. D24).

Detailed Description

Binds the CUDA and HIP launch wrappers in bcknd/device/{cuda,hip} and exposes one backend-independent wrapper per kernel. The formulas are those of steepest_descent_cpu.

Function/Subroutine Documentation

device_sd_direction()

subroutine, public device_steepest_descent::device_sd_direction	(	type(c_ptr)	s_d,
		type(c_ptr)	x_d,
		real(kind=rp), intent(in)	xmin,
		real(kind=rp), intent(in)	xmax,
		integer, intent(in)	n
	)

Parameters

	s_d	Device pointer to the gradient on entry, and to the projected direction on exit.
	x_d	Device pointer to the design variables.
[in]	xmin	Lower bound of the design variables.
[in]	xmax	Upper bound of the design variables.
[in]	n	Number of design variables.

Definition at line 158 of file device_steepest_descent.f90.

Here is the call graph for this function:

Here is the caller graph for this function:

device_sd_update_design()

subroutine, public device_steepest_descent::device_sd_update_design	(	type(c_ptr)	x_new_d,
		type(c_ptr)	x_d,
		type(c_ptr)	s_d,
		type(c_ptr)	delta_d,
		real(kind=rp), intent(in)	psi,
		real(kind=rp), intent(in)	smax,
		real(kind=rp), intent(in)	xmin,
		real(kind=rp), intent(in)	xmax,
		integer, intent(in)	n
	)

Parameters

	x_new_d	Device pointer to the updated design variables.
	x_d	Device pointer to the current design variables.
	s_d	Device pointer to the bound-projected direction.
	delta_d	Device pointer to the move limits.
[in]	psi	Step length.
[in]	smax	Global maximum of the absolute value of the direction.
[in]	xmin	Lower bound of the design variables.
[in]	xmax	Upper bound of the design variables.
[in]	n	Number of design variables.

Definition at line 217 of file device_steepest_descent.f90.

Here is the call graph for this function:

Here is the caller graph for this function:

device_sd_update_move_limits()

subroutine, public device_steepest_descent::device_sd_update_move_limits	(	type(c_ptr)	delta_d,
		type(c_ptr)	x_d,
		type(c_ptr)	x1_d,
		type(c_ptr)	x2_d,
		real(kind=rp), intent(in)	dec,
		real(kind=rp), intent(in)	inc,
		real(kind=rp), intent(in)	dmin,
		real(kind=rp), intent(in)	dmax,
		integer, intent(in)	n
	)

Parameters

	delta_d	Device pointer to the move limits, updated in place.
	x_d	Device pointer to the design variables at the current iteration.
	x1_d	Device pointer to the design variables one iteration back.
	x2_d	Device pointer to the design variables two iterations back.
[in]	dec	Factor applied on oscillation.
[in]	inc	Factor applied on monotone progress.
[in]	dmin	Smallest allowed move limit.
[in]	dmax	Largest allowed move limit.
[in]	n	Number of design variables.

Definition at line 184 of file device_steepest_descent.f90.

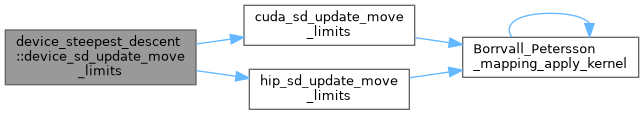

Here is the call graph for this function:

Here is the caller graph for this function:
